Heavy CNC Machined Welding Frame Welded Steel Structure

| Product Introduction

The processing technology of large steel structures is complex and precise.  The raw materials are usually medium-thick plates or profiles, which form the basis of heavy structural components.  During the processing, we combine various techniques such as CNC cutting, bending, welding, machining, and anti-corrosion treatment to meet the shape and size requirements of different structural components.

Welding is a key link;  for large structural components, we employ multi-layer and multi-pass welding techniques, ensuring full penetration of the weld seams, thereby enhancing the stability and load-bearing capacity of the structure.  After welding is completed, the weld seams undergo rigorous non-destructive testing to ensure that the welding quality is defect-free.

In addition, some products require large-scale machining, such as milling and turning, to ensure that the surface roughness meets high precision processing requirements.  Throughout the entire processing process, we strictly control quality to ensure the performance and reliability of large steel structural components.

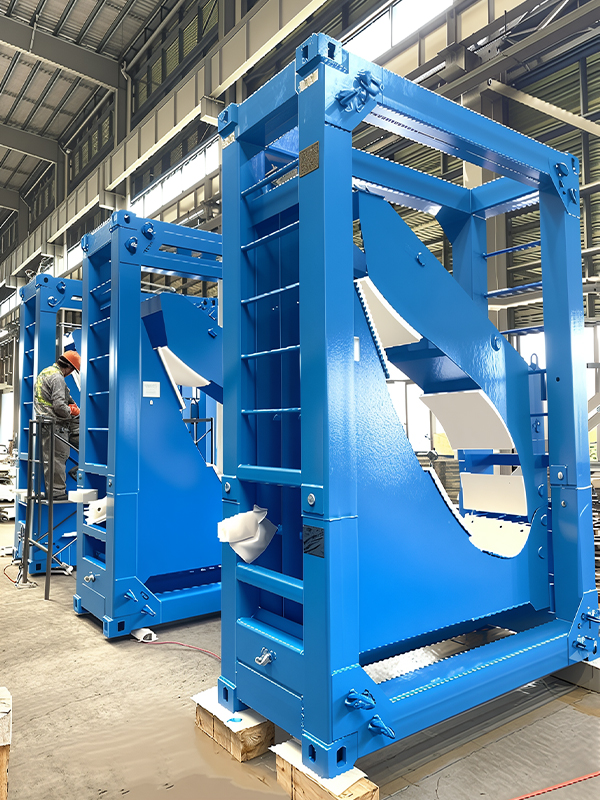

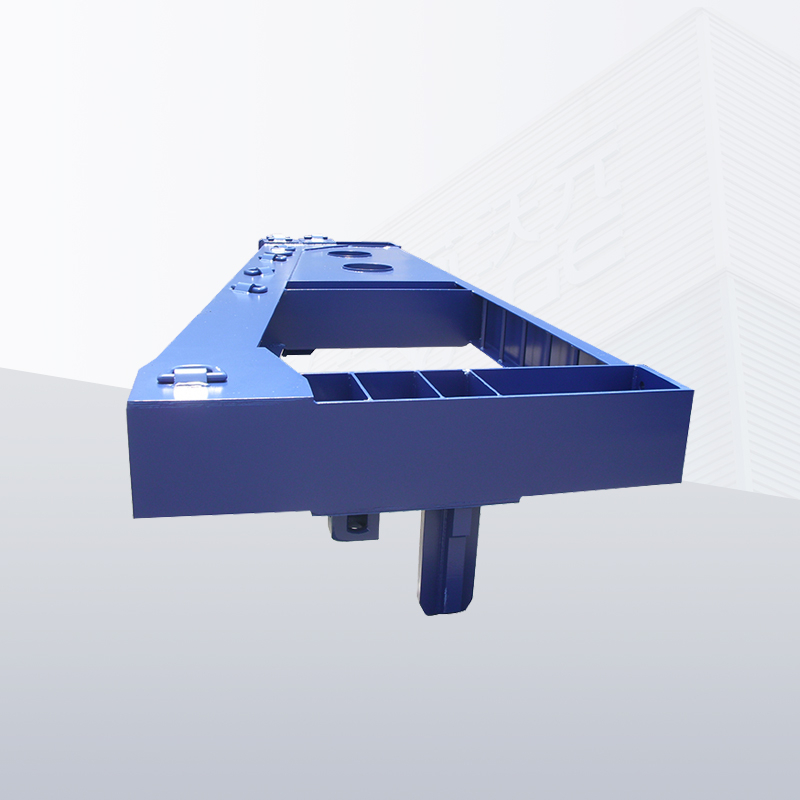

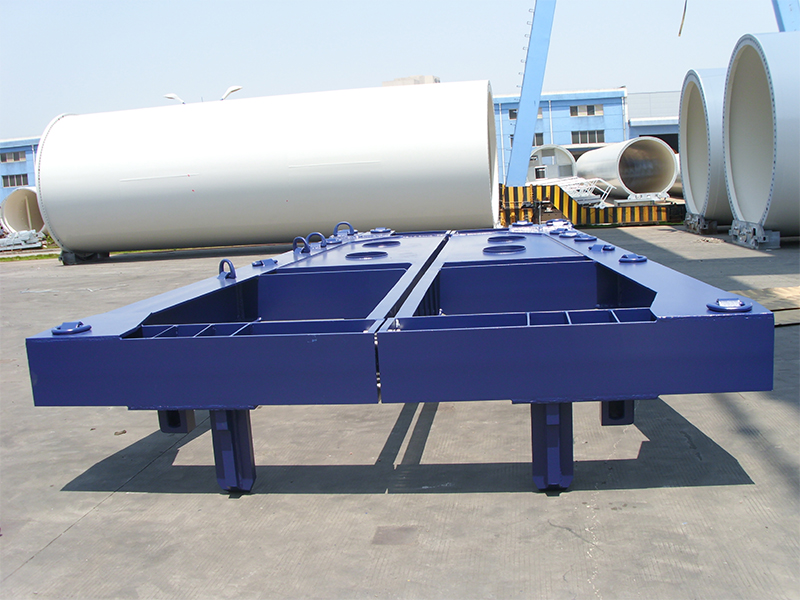

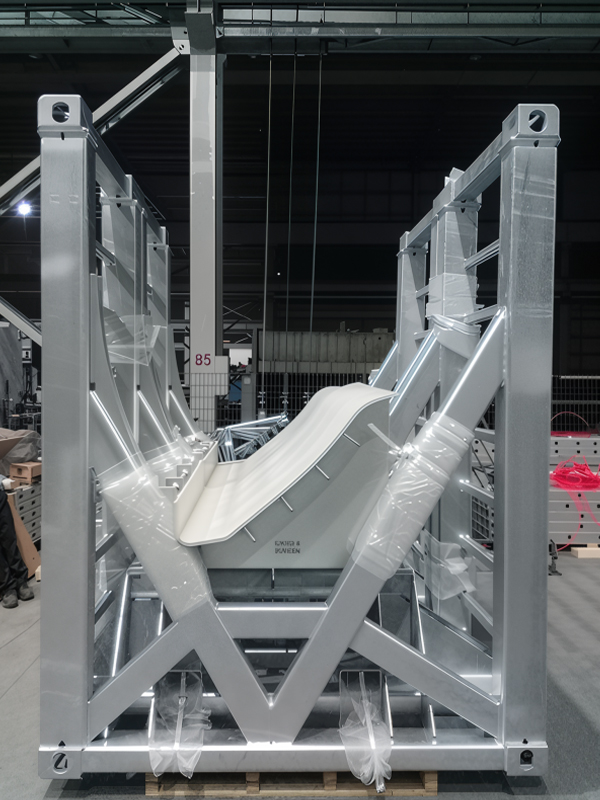

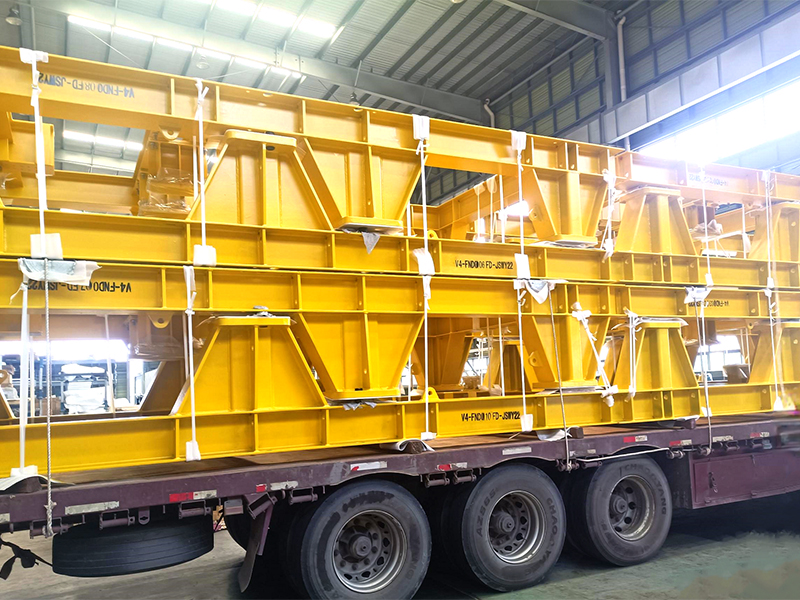

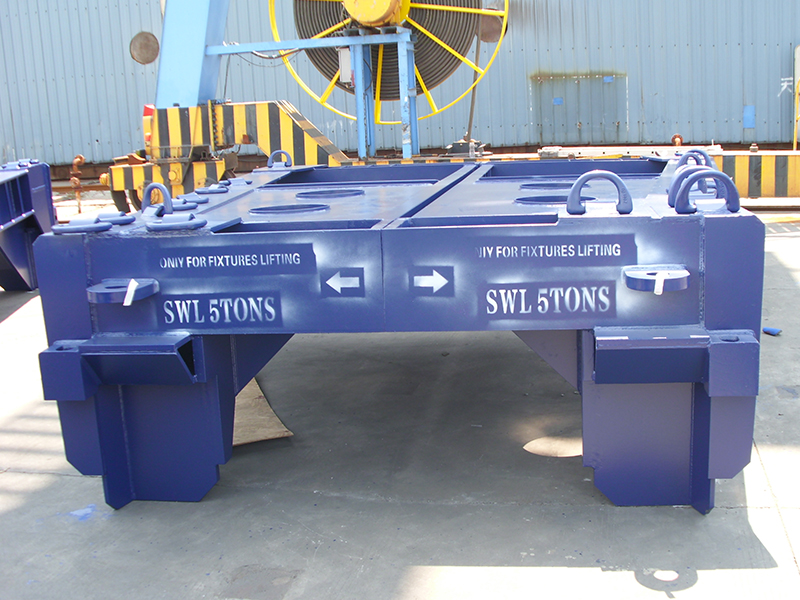

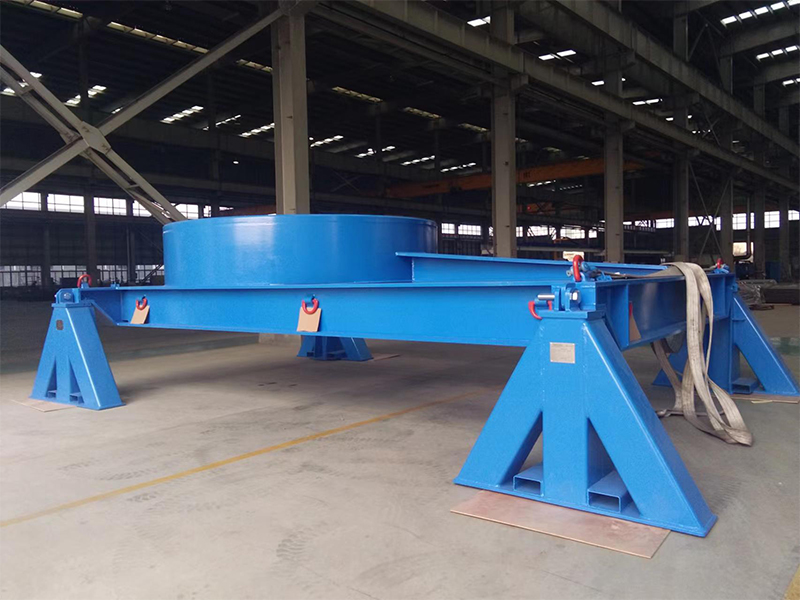

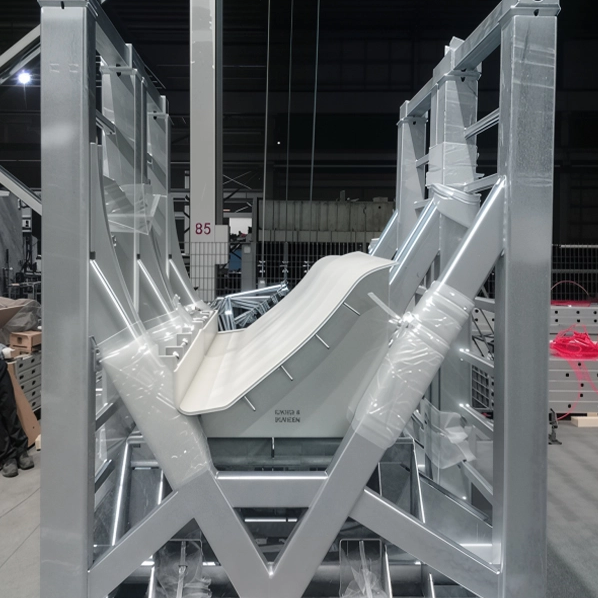

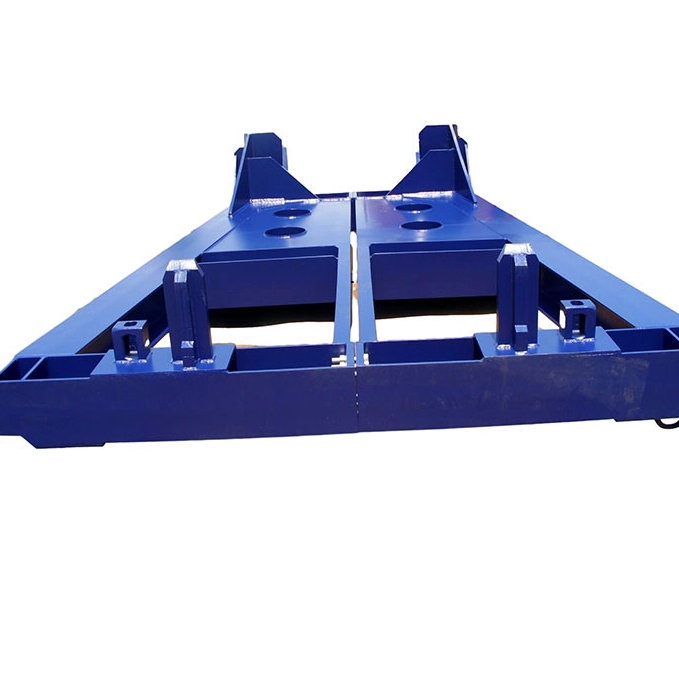

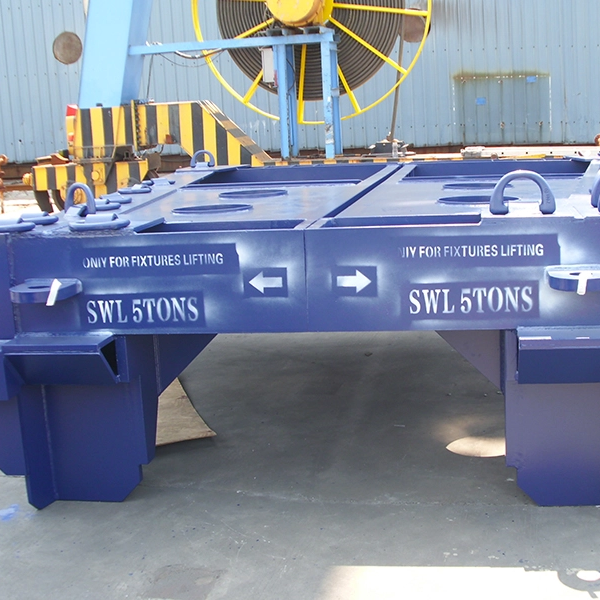

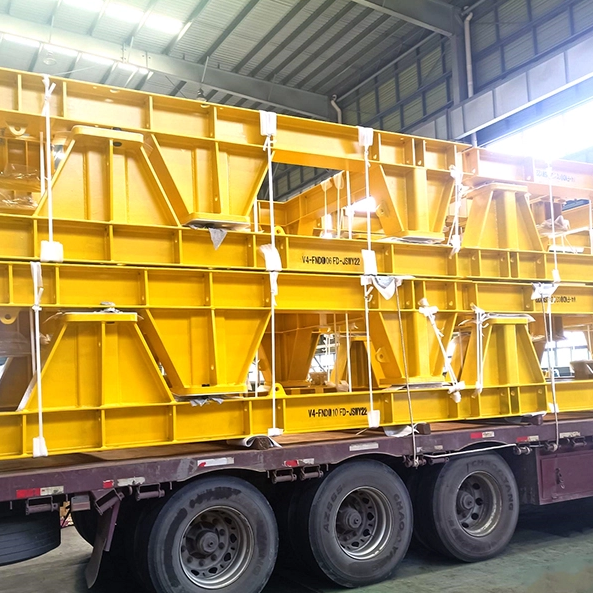

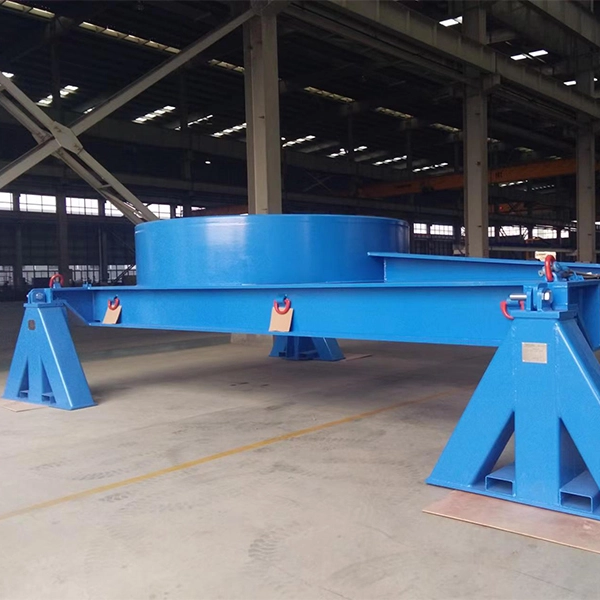

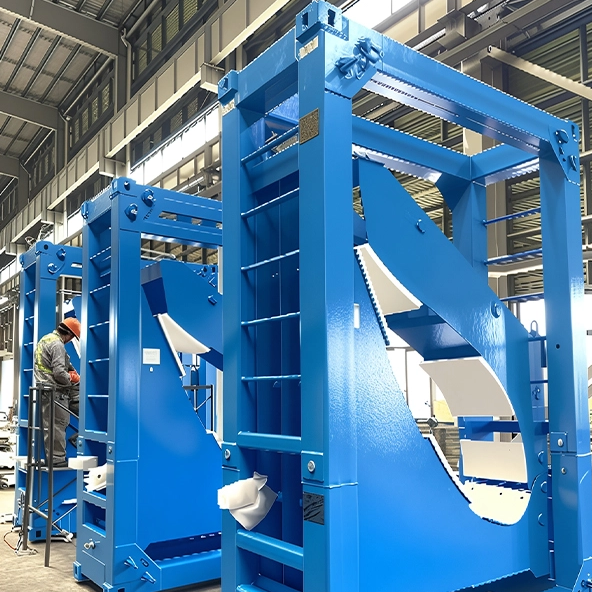

| Product Display

Product Features and Highlights

Strength You Can Build On

• Manufactured for demanding structural and equipment-support applications

• Designed to handle substantial loads and maintain frame stability

• Suitable for heavy-duty environments where rigidity matters

Welding Quality That Supports Long-Term Reliability

• Multi-layer and multi-pass welding process

• Full weld penetration on critical seams

• Improved structural integrity and load-bearing confidence

Precision Where It Matters Most

• CNC machining is integrated after fabrication where needed

• Milling and turning improve dimensional accuracy and surface finish

• Critical mounting, mating, and alignment surfaces can be machined to specification

Built for Harsh Industrial Conditions

• Anti-corrosion treatment helps extend service life

• Suitable for projects that require both structural strength and environmental durability

• Supports dependable performance across fabrication, shipping, and field installation

Custom Manufacturing Flexibility

• Can be produced in different sizes, configurations, and structural layouts

• Adaptable for frames, bases, housings, and large welded support assemblies

• Suitable for project-based fabrication from drawings or technical requirements

Engineering and Structural Advantages

A heavy welded frame is not simply a collection of plates and seams. It is a load path. Every joint, every machined surface, and every reinforcement detail influences how the structure behaves once real forces enter the system.

Why this structure performs better in demanding applications

• Balanced fabrication and machining
  Heavy welding provides structural mass and strength, while CNC machining refines the areas where accuracy cannot be compromised.

• Better alignment during assembly
  Proper machining on key surfaces helps reduce fit-up problems during downstream installation. This can save valuable time and prevent forced correction work.

• Improved load distribution
  A well-designed welded steel structure spreads forces more logically through the frame rather than concentrating them at weak connections.

• Higher confidence in weld integrity
  Multi-layer, multi-pass welding with full penetration supports stronger joints, particularly in thicker materials and complex assemblies.

• Stable long-term service behavior
  When a frame is built with the right raw material, the right weld sequence, and the right finishing operations, it is better prepared to resist distortion, vibration-related issues, and premature wear.

Engineering Value Table

A good frame should not feel uncertain. It should feel planted, smooth where precision is needed, and solid in the way only properly fabricated steel can feel.

Manufacturing Capabilities

Our manufacturing route is built around the real needs of heavy welded structures: size control, weld soundness, machining accuracy, and repeatable quality.

Production Workflow

1. Material Preparation
   Medium-thick plates or profiles are selected according to the structural design and application requirements.

2. CNC Cutting
   Raw material is cut to precise geometry for downstream fabrication accuracy.

3. Bending and Forming
   Sections are formed as required to achieve the intended structural configuration.

4. Welding
   Multi-layer and multi-pass welding methods are applied to critical joints for full penetration and stronger seam performance.

5. Non-Destructive Testing
   Welds are inspected to verify integrity and reduce the risk of hidden defects.

6. CNC Machining
   Milling and turning are applied where flatness, roughness, hole accuracy, or interface precision are required.

7. Anti-Corrosion Treatment
   Surface protection is added to improve durability in service and storage conditions.

Manufacturing Benefits

• More consistent part-to-part accuracy

• Better control over weld seam quality

• Improved interface precision for connected assemblies

• Stronger balance between structure, finish, and function

• Reliable production path for customized heavy steel frames

Materials, Welding Processes, and Surface Performance

This product is built around a simple principle: the raw material must support the fabrication method, and the fabrication method must support the final application.

Material Basis

• Medium-thick steel plates

• Structural profiles for heavy-duty frame construction

• Configurations adapted to different load and geometry requirements

Welding Approach

• Multi-layer welding for strength in thicker sections

• Multi-pass welding to improve seam build-up and penetration control

• Full penetration welding for stronger and more stable joints

Why this matters in practice

• Reduces the chance of weak or shallow weld connections

• Supports more stable structural behavior under working loads

• Helps the frame maintain confidence under repetitive service conditions

Surface and Durability

• Anti-corrosion treatment helps protect the structure during storage and service

• Improved resistance to environmental exposure

• Cleaner final appearance and more durable surface condition

The visual character of a finished heavy welded frame matters too. A well-made structure looks deliberate. The steel appears composed, the seams look resolved, and the machined areas signal precision rather than rough correction.

Precision Control and Quality Assurance

Heavy fabrication becomes valuable only when it is controlled. Large weldments can drift, distort, or lose accuracy if the process is not disciplined. That is why quality assurance is not a final checkbox for this product—it is built into the process.

Quality Control Focus

• Process control from raw material cutting to final machining

• Attention to geometry and shape throughout fabrication

• Full weld penetration strategy for critical seams

• Non-destructive testing after welding

• Surface accuracy support through milling and turning where needed

Quality Benefits for the End User

• Fewer installation surprises

• Better fit with mating parts or equipment

• More confidence in structural performance

• Reduced rework risk during assembly

• Better long-term reliability under load

Inspection Priorities

• Weld seam integrity

• Machined surface quality

• Dimensional consistency

• Surface condition after protective treatment

For the customer, quality is not abstract. It is the difference between a frame that drops into place and a frame that demands correction. It is the difference between smooth commissioning and lost time on the shop floor.

Applications

This heavy CNC machined welding frame welded steel structure is suitable for a broad range of engineered metal structure uses.

Typical Applications

• Industrial machine frames

• Heavy equipment bases

• Structural support frames

• Welded housings and skeleton structures

• Transport or handling support frames

• Large fabricated assemblies requiring machined interfaces

• Customized steel structure fabrication projects

Best-Fit Project Scenarios

• Projects needing both welded mass and machined accuracy

• Structures exposed to heavy loads or repeated operating stress

• Equipment installations where flatness and alignment are critical

• Applications requiring custom geometry and engineered fabrication support

Product Parameters

The current product page does not show a detailed numeric specification table. The following parameter table preserves the factual product information currently visible on the page.

Why Choose Us

What You Gain

• A stronger fabrication foundation
  We do not separate welding quality from machining quality. We combine both because heavy structures need both.

• A product built for real load conditions
  This frame is made for projects where strength, stability, and reliable structural behavior are not optional.

• Process discipline from start to finish
  From raw material preparation to anti-corrosion treatment, the production route is organized to protect quality at every stage.

• Better downstream usability
  Accurate machined areas and verified weld quality help reduce the friction that often appears during installation and assembly.

• Custom-ready manufacturing
  We support project-specific fabrication rather than limiting customers to fixed-format products.

A strong steel structure should do more than meet a drawing. It should make the next step easier—easier to assemble, easier to trust, and easier to keep running over time. That is the standard we aim to deliver.

FAQ

1. What is this product mainly used for?

It is used for heavy-duty structural applications such as machine frames, steel support structures, bases, housings, and other welded assemblies that require both fabrication strength and machined precision.

2. What materials are used?

According to the current product page, the main raw materials are medium-thick plates or structural profiles.

3. Why is CNC machining added after welding?

Welding provides structural strength, but machining is often needed on critical surfaces to improve flatness, interface accuracy, and overall assembly precision.

4. What makes the welding process suitable for heavy structures?

The product uses multi-layer and multi-pass welding, which helps achieve full penetration and improves weld seam strength for large structural components.

5. Is weld inspection included?

Yes. The current product page states that weld seams undergo rigorous non-destructive testing to ensure welding quality.

6. Can the structure be customized?

Yes. This type of product is suitable for custom fabrication based on structural requirements, dimensions, geometry, and machining needs.

7. Is anti-corrosion treatment available?

Yes. The current product page includes anti-corrosion treatment as part of the process flow.

8. What information is helpful before quotation?

Technical drawings, dimensions, material requirements, quantity, critical tolerances, machining areas, weld standards, and application details will help define the most suitable production plan.
